Color Guide

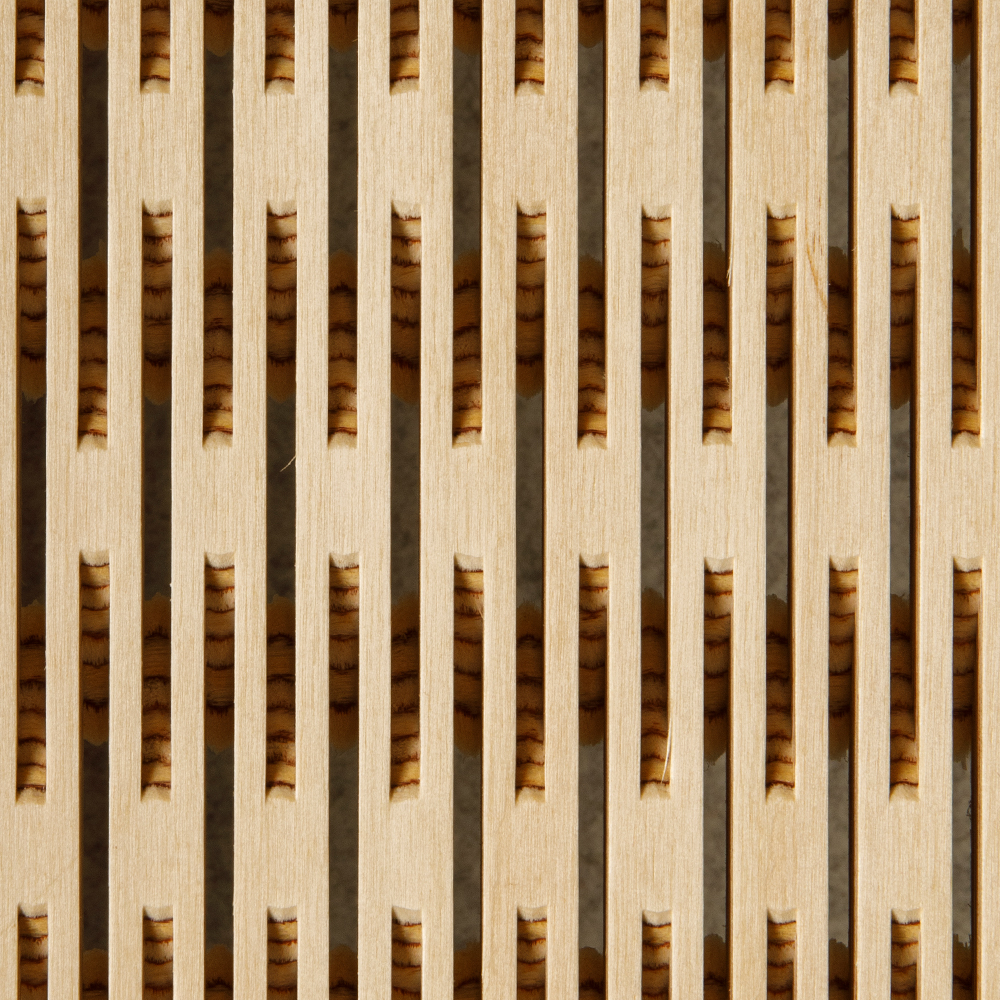

Sonar Baltic Birch Plywood Finished Sonar Baltic Birch Plywood Natural Sonar Douglas Fir Finished Sonar Douglas Fir Natural Sonar Black MDF Finished Sonar Black MDF Natural Sonar Standard MDF Finished Sonar Standard MDF Natural Sonar Grey MDF Finished Sonar Grey MDF Natural Sonar Walnut Finished Sonar Walnut Natural Sonar White Pine Finished Sonar White Pine Natural

Sonar Flexible Wood

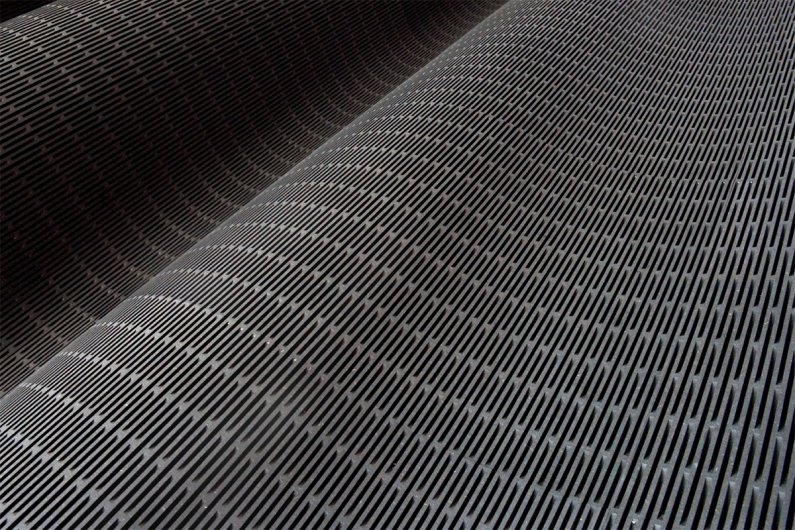

Wood and engineered wood are made flexible with a patented incision process. Complex incisions allow textile-like properties plus create transparency and sound absorbing properties unexpected from wood products.

Sonar’s regular incisions in the longitudinal direction create an interesting discontinuity on the surface with visible vertical and horizontal lines. Available in standard sheet sizes in seven wood types in natural or finished. The front and reverse sides look clearly distinct, so application areas are primarily ceiling and wall panels.

  • Designer Dukta
  • Origin United States
  • Sheet Size 3’-10” x 7’-10 3/4” (116.8 x 240.7 cm)
  • Sheets have 7/8 in (2.2 cm) solid border on left and right edges
  • Thickness 3/8 in (9 mm)
  • Weight MDF: 31 lb (14.1 kg)
  • Baltic Birch Plywood: 25 lb (11.3 kg)
  • Hardwoods: 22 lb (10 kg)
  • Minimum Bending Radius MDF + Baltic Birch Plywood: ±5 7/8 in (15 cm)
  • Hardwoods: ±9 1/2 in (24 cm)
  • Open Area 20–40%
  • Primary Uses Wall panels
  • Ceiling panels
  • Custom Colored MDF as well as select hardwoods are available on a custom basis and must be quoted - Finished Products Spinneybeck also carries acoustic wall panel products made with Sonar sheets. Please refer to spinneybeck.com/still for complete information.
  • Durability Contract or residential
  • Lead Time Made to order and certain lead times will apply
  • Maintenance Dust regularly. Spot clean with cloth dampened with water only.
  • Variation Wood is a natural material and minor changes in color are evidence of the 100% natural origin of the material. Please note that Walnut will exhibit more conspicuous variation and Finished Wood Types may have a more pronounced grain.
Dukta

Dukta

Based in Zürich, Switzerland, Dukta has its roots in wood bending experiments. During a training course led by Serge Lunin in 2007, Christian Kuhn had the idea to create a lounger made from curved wooden elements. Together they tested alternatives including steam bending and gluing layers together but found that certain arrangements of incisions gave the wood a great deal of flexibility. Now headed by the father and son team of Serge and Pablo Lunin, Dukta was founded in 2011 and works with licensed partners throughout the world.

READ MORE >

  • Flammability ASTM E 84: Class B (Fire Rated)
